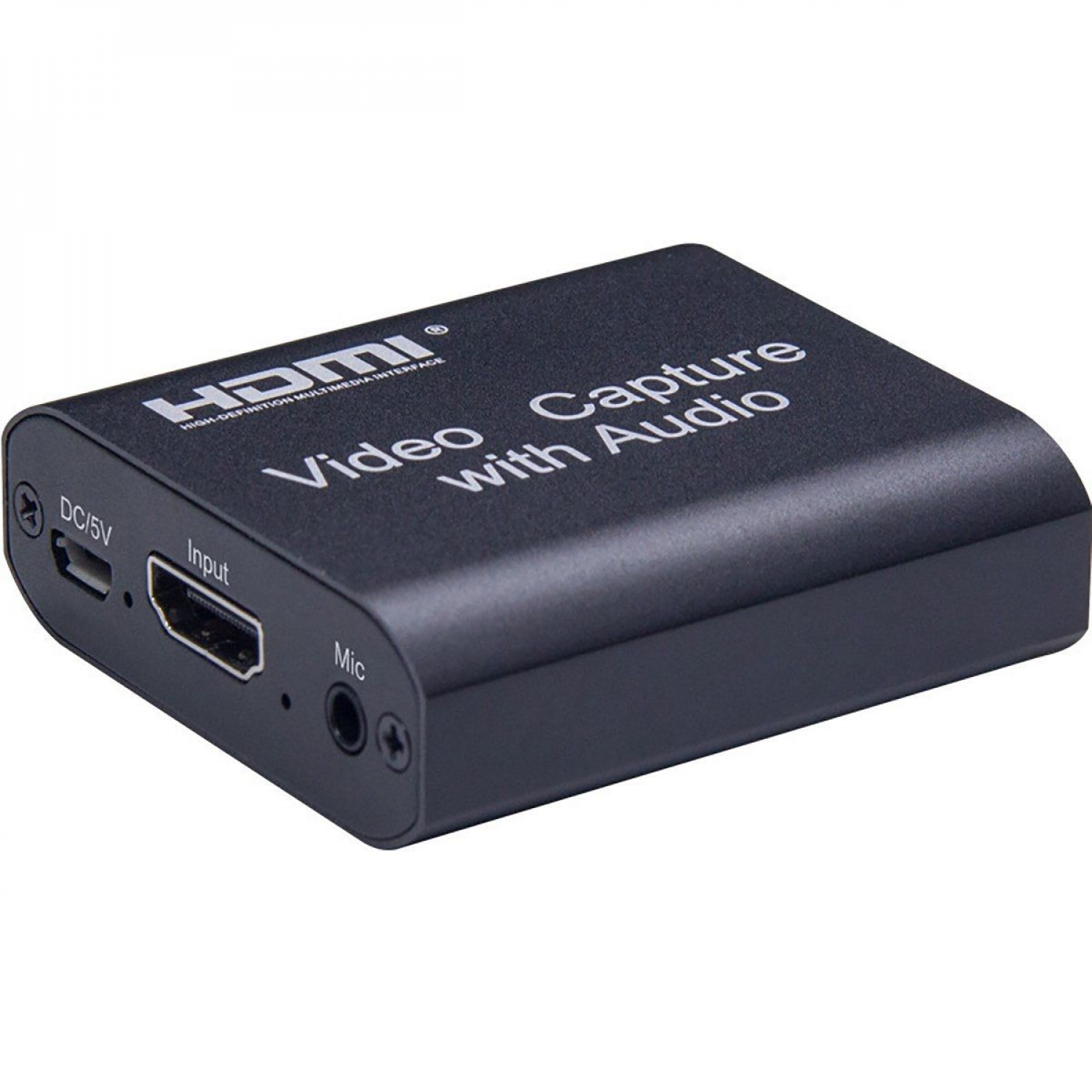

4K 1080P HDMI Video Capture With Audio Out

Features:

Support HDMI loop out
Support microphone audio input, 3.5 stereo output
Support microphone audio and hdmi audio superimpose capture
Support input max resolution 4K
Support output max resolution 1080P
Support AWG26 HDMI standard cable: input up to 15 meters(1080P and below resolution)
Support most acquisition software, such as VLC, OBS, Amcap, etc
Support Windows, Android and for MacOS
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Compact and portable
Material: Plastic
HDMI resolution: Max input can be 4K
Support video format: 8/10/12bit Deep color
Video output format: YUV, JPEG
Video output resolution: Max output can be 1080P
Support audio format: L-PCM
Input cable distance: ?15m,AWG26 HDMI standard cable
Max working current: 0.7A/5VDC
Operating Temperature range: (-10 to +55?)
Dimension(LxWxH): 59 x 56 x 19(mm)

Note:

Computer hardware configuration requirements :
CPU: PC i5-3400 or above ?NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above?NC NVIDIA GT735M or above
Run memory: 4G RAM

What's in the box
1 x Video Capture

This item is in store.
